Description

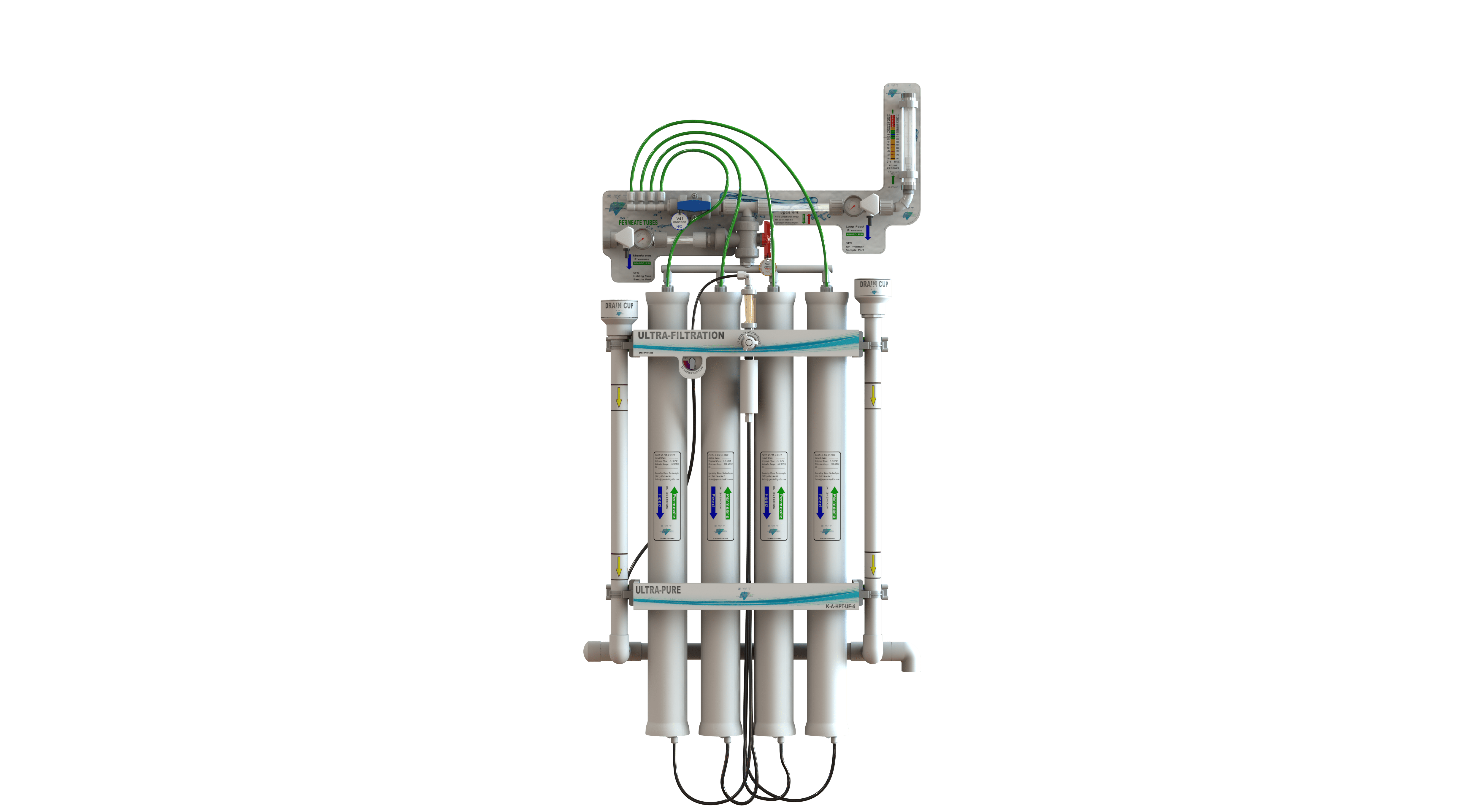

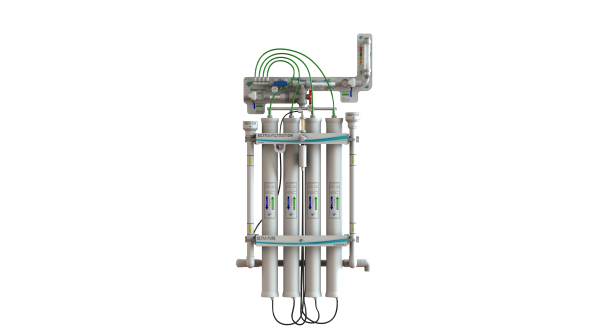

The SWT Ultrafiltration Rack for High Purity Distribution is designed for high purity water loop distribution primarily in the medical (dialysis) setting. It is constructed of fiberglass membrane vessels with Teflon fittings and connections.

The system is placed on the permeate water distribution loop. The Ultrafilter membranes remove particle and microbial contamination from the permeate water and are just one component in a complex system of water purification equipment for dialysis processes.

The Membranes contained in the Ultrafiltration Rack will reject microbiological contamination as opposed to a dead end cartridge filter that traps particles. By setting a reject flow, the contaminants are flushed from the membranes. The reject flow rate can be turned off during non-operational hours of the facility.

The Ultrafiltration Membranes are tolerant to bleach and renalin / peraciden at a 1:100 dilution ratio. They are not compatible with high level disinfection with bleach or renalin / peraciden. The membranes will not tolerate heat or ozone disinfection.

The SWT Ultrafiltration Rack features zero dead leg plumbing, high purity sample ports, 316 S.S. pressure gauges, output flow meter, sampling cups, drains, and an adjustable reject with shut off valve.
